When designing rubber components, even small differences in dimensions can have a big impact on how parts fit, perform and ultimately how much they cost to produce. Tolerances (the allowable variation in a part’s size or shape) play a critical role in controlling these outcomes. Properly designed tolerances ensure that components assemble correctly, maintain functionality under stress and help control overall production costs.
At Custom Rubber Corp., decades of experience in molded rubber solutions have taught us how to balance precision with practicality. We guide every project from design through production, helping define tolerances that support both optimal performance and efficient manufacturing.
What Are Tolerances?
Tolerances define the acceptable range of variation in a part’s dimensions, ensuring that components fit and function properly. For rubber parts, tolerances are particularly important because rubber behaves differently than rigid materials like metals or hard plastics. Its elasticity allows it to compress and stretch or deform under load.
The
ARPM Rubber Handbook provides guidance on dimensional tolerances, helping engineers specify realistic limits that maintain performance without adding unnecessary manufacturing complexity. A nominal dimension is the target measurement for a feature, while the allowable variation defines the upper and lower limits that are acceptable in production. Rubber’s inherent flexibility and variability mean that tolerances are often wider than those for rigid materials, yet they still need careful control to ensure reliable sealing, proper assembly and consistent performance in the final product.
Accounting for Shrinkage in Tolerances
Another key factor in rubber tolerances is shrink rate, which is the natural tendency of rubber to contract slightly as it cools and cures after molding. Different rubber compounds shrink at different rates, and the geometry of a part can also influence how much it changes in size. Understanding the expected shrinkage helps engineers set realistic tolerances, ensuring that parts assemble correctly and maintain proper function.
Fixed vs. Closure Dimensions

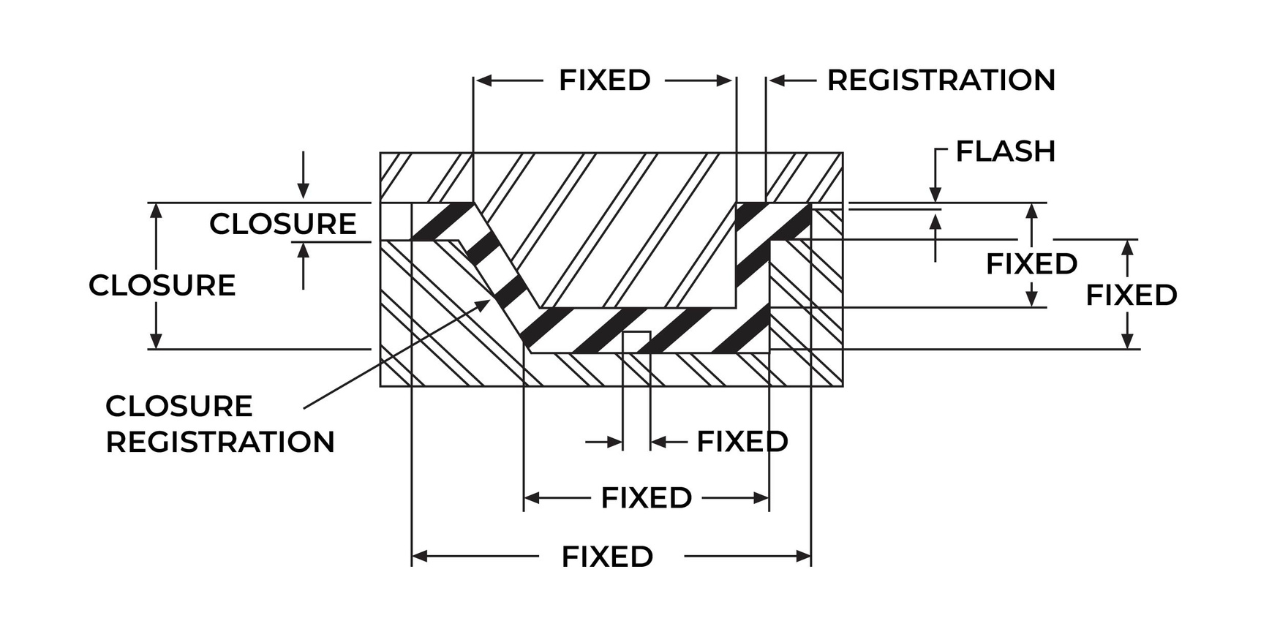

In rubber molding, the presence of flash—a thin layer of material that escapes at the mold parting line—can affect certain part dimensions. Understanding flash is important because it influences how tolerances are applied and which dimensions remain consistent. According to the ARPM Rubber Handbook, rubber dimensions are generally classified as fixed or closure:
- Fixed dimensions: These are unaffected by variations in flash thickness at the mold parting line. They remain consistent regardless of minor molding inconsistencies.
- Closure dimensions: These are influenced by flash thickness and other molding factors, such as raw material flow, preform shape and the molding process itself.
Identifying fixed and closure dimensions guides how tolerances are applied and measured. Fixed dimensions can be controlled individually, whereas closure dimensions often share a single tolerance, affecting inspection methods, quality control and post-molding adjustments.
Balancing Variation and Performance in Rubber Parts
Because rubber behaves differently than rigid materials, tolerance planning must account for more than static dimensions. The true impact shows up in how parts assemble, how they function in operation and how they perform throughout their service life.
Fit
Tolerances affect how rubber components interact with mating parts such as seals, gaskets or bushings. If a rubber part is too large or oversized, assembly can become difficult or even impossible, leading to damaged components and delays. Parts that are too loose may fail to form proper seals, allowing air or water leaks and reducing overall reliability. Repeated stress on misfitting components can cause fatigue or premature failure.
Function
Beyond fit, tolerances also influence how a part actually works. The right dimensions help rubber components seal properly, absorb vibrations and handle loads evenly. Rubber’s natural flexibility can make up for small variations, which is beneficial in many designs. However, too much variation can compromise function, especially in high-precision assemblies or components exposed to mechanical stress. Not only does this reduce the effectiveness of the part, but it could potentially impact surrounding systems.
End-use
Rubber parts don’t stay exactly the same once they’re in use. Temperature fluctuations, chemical exposure and repeated compression all challenge their dimensional stability. Over time, these factors can cause expansion, shrinkage or permanent deformation (compression set). Thoughtfully defined tolerances address these changes, helping parts maintain proper fit and function throughout their service life.
How Tolerances Influence Cost
Tighter tolerances often mean higher manufacturing costs. Getting a rubber component to hit exact dimensions can require prototype tooling, more complex tooling, longer setup times and extra inspection to make sure every piece meets spec. Even small deviations can lead to scrap or rework, which quickly adds both time and expense. In our experience at Custom Rubber Corp., many tolerances specified on drawings are tighter than necessary, which can add cost without providing meaningful performance benefits.
Complex shapes, multi-durometer designs or colored rubber parts all require careful control during molding to maintain accuracy. Rubber-to-metal bonded parts add another layer of difficulty, since both materials need to align perfectly while keeping the bond strong. The bonding process also affects the rubber’s natural shrink rate, which can create dimensional challenges if not properly accounted for. Each of these factors can increase the chance of adjustments or additional processing, which naturally drives costs up.
While precision matters, it’s equally important not to let the pursuit of “perfect” tolerances create unnecessary complexity or cost. Too tight a specification can slow production, increase scrap and complicate assembly, while too loose a tolerance can compromise performance. The goal is finding a balance that ensures parts work well while keeping manufacturing efficient and cost-effective.
Industry Standards and Best Practices
Standards like those in the
ARPM Rubber Handbook provide a helpful starting point for setting tolerances. They offer guidance on what ranges are realistic for different types of rubber and molding processes, helping engineers avoid specifications that are either impossible or unnecessarily tight.
Some key best practices include:
- Focus on critical features: Apply tight tolerances only where they truly impact fit, function or performance, rather than controlling every dimension.
- Involve suppliers early: Collaborating with the manufacturer during the design phase helps identify realistic tolerances and avoid costly adjustments later.
- Use prototyping: Test parts under real-world conditions to see how compression, temperature and environmental factors affect dimensions before committing to full production.
- Understand material and process limits: Knowing how rubber behaves and how each molding process affects dimensions makes tolerance decisions more informed and practical.
Taking a strategic approach to tolerances helps prevent surprises, boost part reliability and make resources go further.
Tolerance Considerations Across Processes
Different rubber molding processes offer varying levels of dimensional precision, which directly affects tolerance planning:
Compression molding
This process is versatile and works well for larger or simpler parts. While it can produce durable, high-quality components, achieving very tight tolerances can be challenging due to material flow in the molding process. Compression molding is best suited for components where moderate precision is acceptable.
Transfer molding
Transfer molding offers better control over complex shapes and smaller components. By forcing material into the mold under pressure, it allows for more consistent dimensions compared to compression molding. It’s a good choice when moderate or high precision is needed, providing a balance between design flexibility and dimensional accuracy.
Injection molding
Injection molding typically provides the tightest tolerances and the most repeatable results, making it ideal for high-volume production or parts with intricate details. This level of control ensures parts meet exact specifications. The process also reduces variability between runs, ensuring consistency across large production batches.
Choosing the right process depends on part geometry, material and production volume. Early collaboration with an experienced manufacturer helps set realistic tolerances and ensures parts meet both performance and cost goals.
Getting the Best Results with Custom Rubber Corp.
Tolerances can make or break a rubber component’s fit, function and cost. Getting them right from the start helps parts assemble easily, perform reliably and avoids costly rework later. Unlike metals or plastics, rubber’s flexibility and sensitivity to temperature, compression and environmental factors means thoughtful tolerance planning is essential.
Working with an experienced partner like Custom Rubber Corp. makes this process easier. By collaborating early, you can align design goals with manufacturing realities, making sure parts meet performance requirements without unnecessary cost or complexity. From prototyping to production, our team provides guidance and support to help your rubber components succeed in the real world.
