Managing multi-wire feed-throughs is a familiar challenge for engineers and designers. As systems become more compact and complex, routing multiple wires through an enclosure while maintaining a reliable environmental seal—and keeping everything clearly identified—can quickly complicate both design and assembly. Moisture ingress, installation errors and confusion between similar components are all risks that can impact performance and reliability.
One effective way to address these challenges is through the use of
colored wire seals. Beyond sealing performance, color introduces an added layer of functionality, supporting visual identification, simplifying assembly and improving quality control across a wide range of industrial applications. When specified thoughtfully, colored wire seals can help teams reduce errors and optimize overall system clarity without compromising sealing integrity.
What Are Wire Seals—And Why Color Matters

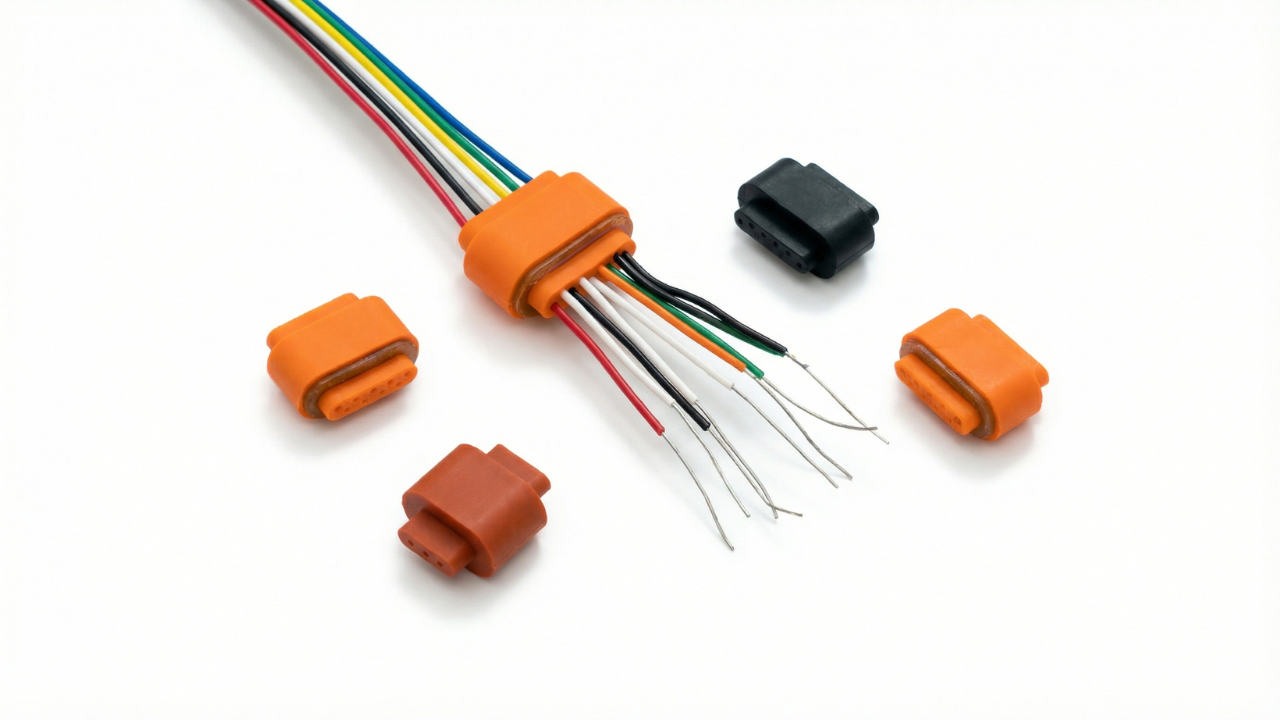

Wire seals are precision‑molded rubber components with holes sized so wires can be fed through them before assembly. When installed and compressed, the rubber tightly seals around each wire, creating a leak‑proof barrier that prevents water, dust and other contaminants from entering an enclosure or connector. In applications with multiple wires routed through a single opening, multi-wire seals also help maintain proper spacing and strain relief while ensuring consistent sealing around each conductor.
While traditional wire seals are typically molded in black, adding color introduces clear visual and functional advantages. Colored wire seals make it easy to distinguish between similar components that differ by wire count, size or application—such as identifying a nine-wire seal versus a five-wire seal at a glance. This visual clarity is especially valuable in systems or production environments that use multiple seal configurations, allowing teams to assemble, inspect and service components more efficiently.
Functional Benefits of Colored Wire Seals
Using colored wire seals provides engineers and assembly teams with instant visual guidance. The benefits include:
Faster assembly & reduced errors
Color coding simplifies the identification of specific cable runs or seal variants during production. Assemblers can instantly recognize the correct seal for each harness, which speeds up installation and reduces the risk of mistakes.
Enhanced quality control & traceability
Colored wire seals make both automated and manual inspection processes more efficient. By visually differentiating components, quality teams can quickly verify correct installation, while color coding also supports improved traceability across production batches—helping engineers track performance and identify potential issues more effectively.
Application-driven distinction
In systems where multiple harness types coexist, color allows seals to be grouped by function, performance specification or destination. This distinction ensures that each seal is matched to its intended application, preventing cross-use errors and supporting consistent system performance.
Design communication
During prototyping and in engineering drawings, color provides an additional layer of specification clarity. Designers and engineers can convey critical information about seal type, function or placement without relying solely on documentation. This streamlines communication between design, production and assembly teams.
The use of color in wire seals mirrors a wider practice in molded rubber components, including vibration grommets and other seals, where color helps differentiate materials, durometers or performance specifications.
Where Colored Wire Seals Make a Difference
Colored wire seals are used across a wide range of industries where environmental protection and clear component identification are critical, including:
- Marine: In marine environments, wire seals protect against salt spray, moisture and vibration. Using color allows teams to quickly identify components for proper installation and maintenance, helping reduce corrosion and minimize downtime.
- Automotive: Wire seals in automotive applications ensure correct installation in engine bays, harness connectors and chassis pass-throughs. Color coding helps reduce assembly errors while maintaining protection from moisture, dust and chemicals.
- Aerospace: Aerospace systems operate under extreme temperature fluctuations and vibration. Colored wire seals make it easier to differentiate harnesses and subsystems during installation and inspection, preserving the integrity of critical electrical systems.
- Industrial automation & controls: Complex machinery often involves numerous cables in tight spaces. Colored wire seals provide clear visual guidance, reducing the risk of misrouting, simplifying maintenance and preventing cross-connections.
Design Considerations for Specifying Colored Wire Seals
When specifying colored wire seals, performance requirements should always come first. Material selection should be driven by functional needs such as temperature range, chemical resistance, environmental exposure and compression set. Color should be a secondary consideration that supports identification and process efficiency. With proper pigments and proven molding processes, color can be incorporated without degrading material properties or long-term reliability.
Engineers should also consider how color will perform throughout the product’s service life and assembly process. Environmental exposure matters, particularly in applications involving UV light, extreme temperatures or repeated thermal cycling. Evaluating color stability and visibility over time helps ensure seals remain identifiable throughout the product lifecycle.
Elevating Sealing Solutions with Intentional Color
Colored wire seals demonstrate how thoughtful design details can deliver practical value. By improving identification, reducing assembly errors and supporting quality control, color helps bring order and efficiency to complex electrical systems, while still offering reliable sealing performance.
At Custom Rubber Corp., we specialize in molding colored rubber components and have the expertise to produce wire seals for even the thinnest wires, with precise, tiny thru-holes in the seal body. Forward-thinking engineering teams use color as a subtle yet powerful tool to enhance system functionality, and we partner with them to deliver solutions built for demanding applications.
Contact us to see how intentional color and proven sealing expertise can optimize your next project.
Frequently Asked Questions
Do colored wire seals perform the same as standard black wire seals?
Yes. When properly specified and manufactured, colored wire seals provide the same environmental sealing performance as standard black seals. Material selection and compound formulation drive performance, while color is added using pigments.
Can color affect material properties or durability?
Color should not negatively affect material properties when appropriate pigments and molding processes are used. Factors such as temperature resistance, chemical compatibility and compression set remain dependent on the base material, not the color.
What materials are commonly used for colored wire seals?
Colored wire seals can be molded from a variety of elastomers, including silicone, EPDM, natural rubber and other specialty compounds. The
material choice depends on a variety of application requirements such as temperature range and environmental exposure.
How do engineers typically use color when specifying wire seals?
Color is often used to differentiate wire count, seal size, function or destination system. It can also support assembly workflows, quality inspection and maintenance by providing immediate visual identification.
Can colored wire seals be cusomized?
Yes. Wire seals can be customized by size, number of thru-holes, material and color to match specific application and performance requirements.
