Molded Rubber Shock Assembly


  • Molded Rubber Shock Mounting Ref: 105550, 105645

    Two Metal Inserts Connected By Rubber

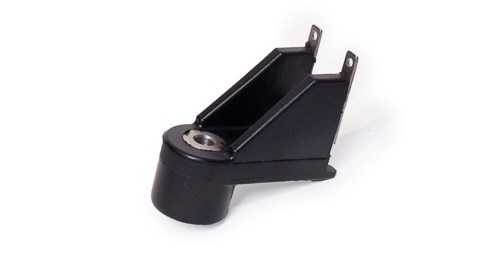

    The picture shows the unique design of this rubber isolator or shock foot assembly. There are two metal inserts:

    • A U-shaped metal bracket that has three attachment points (two at the top are shown in the photo).
    • A steel bushing or sleeve that is held by the rubber around the front end

    The design allows the bracket to be mounted securely to the frame of the devise while the delicate subassembly is securely fastened to the steel bushing or sleeve. The rubber in between isolates the subassembly - multiple rubber parts are used to support the subassembly.

    Making the Complicated Look Easy
    Custom Rubber Corp. took a complicated design with multiple metal inserts and was able to make the production of the part look easy to our customer. The material and bonding agent were selected to insure a bond between the rubber and metal that would exceed the tear strength of the rubber.

    The rubber parts pictured are not in stock or for sale. These are examples of custom-manufactured products that illustrate Custom Rubber Corp.'s capabilities. Contact us with information on your needs.
