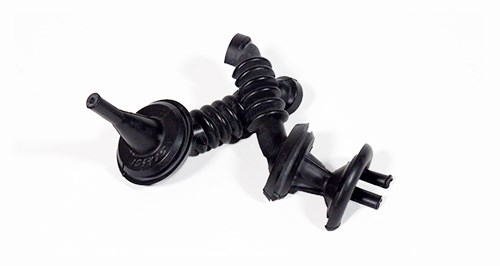

Custom Rubber Corp. worked with a Tier2 Automotive supplier to prototype a few different versions of a rubber convoluted tube designed to protect a wire harness from the A-Pillar to the door of a car. The different designs show illustrate the combination of a grommet feature on the larger diameter end to hold it in place on the A-Piller, and a smaller end that is secured to the door. The part shown with two exit holes on the large diameter end was designed to let air into the space between the A-Pillar metal plates.
The material used for the application meets all the automotive standards for parts in similar loactions of an automobile - it's a high-grade EPDM material. Contact Custom Rubber Corp. to discuss your prototyping needs for rubber molded convoluted tubes and rubber bellows.
The molded rubber parts pictured are not in stock or for sale. These are examples of custom-manufactured products that illustrate Custom Rubber Corp.'s capabilities.
